MACHINES


YAMAHA YSM20R pick and place machine

  • high speed and reliability
  • advanced optical recognition of components
  • in-line system for larger batches
  • also can be used to assemble prototypes require high precision
  • intelligent feeders
  • smallest part size: 008004(0201 metric)
  • maximum PCB size: 810x490mm
  • able to handle any packages including QFN, QFP, BGA, VTLA etc.

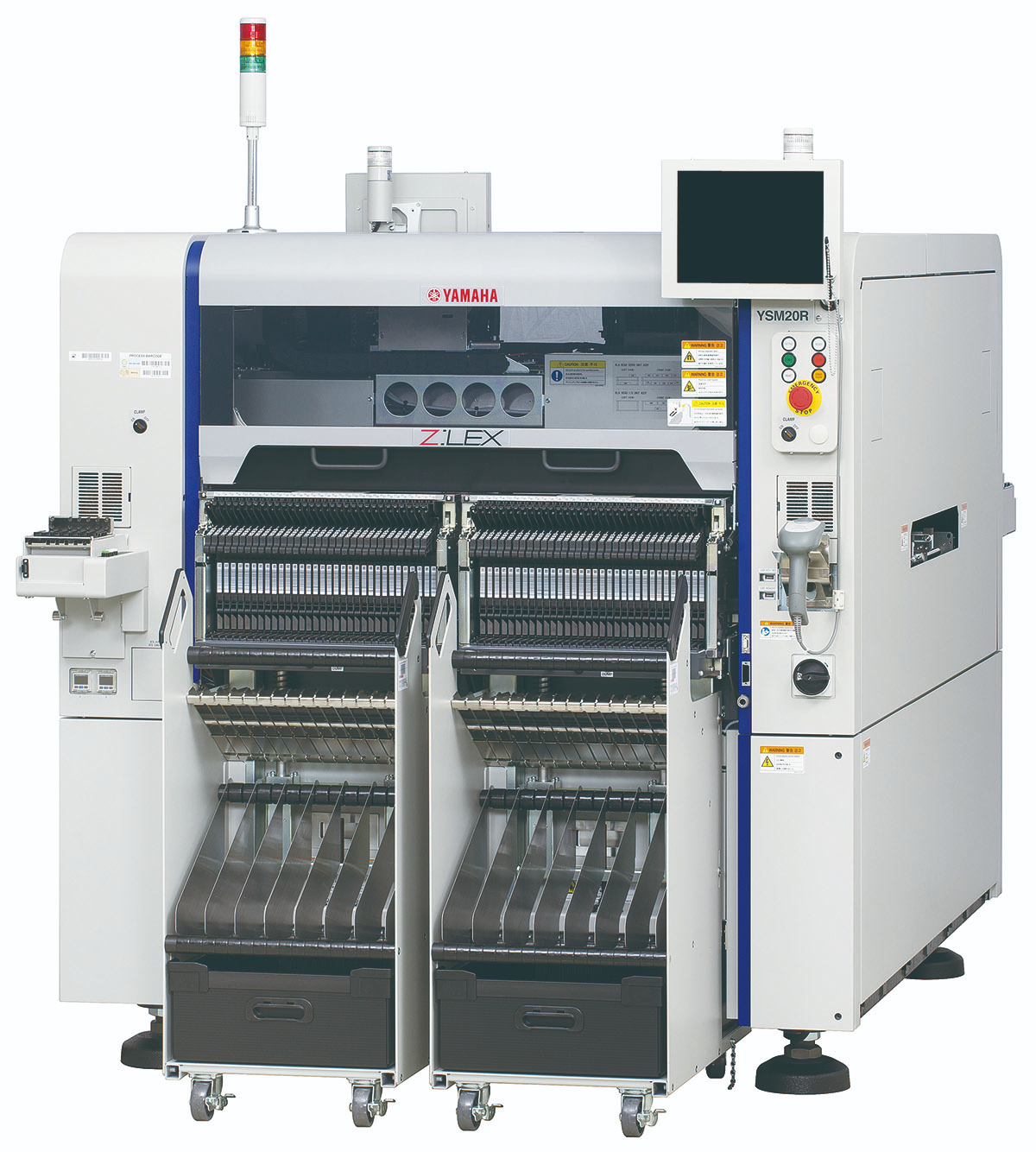

YAMAHA YSM20R pick and place machine
shadow



YAMAHA YSM20R-2 dual head pick and place machine

  • dual head operation for efficency
  • high speed and reliability
  • advanced optical recognition of components
  • in-line system for larger batches
  • also can be used to assemble prototypes require high precision
  • intelligent feeders
  • smallest part size: 008004(0201 metric)
  • maximum PCB size: 810x490mm
  • able to handle any packages including QFN, QFP, BGA, VTLA etc.

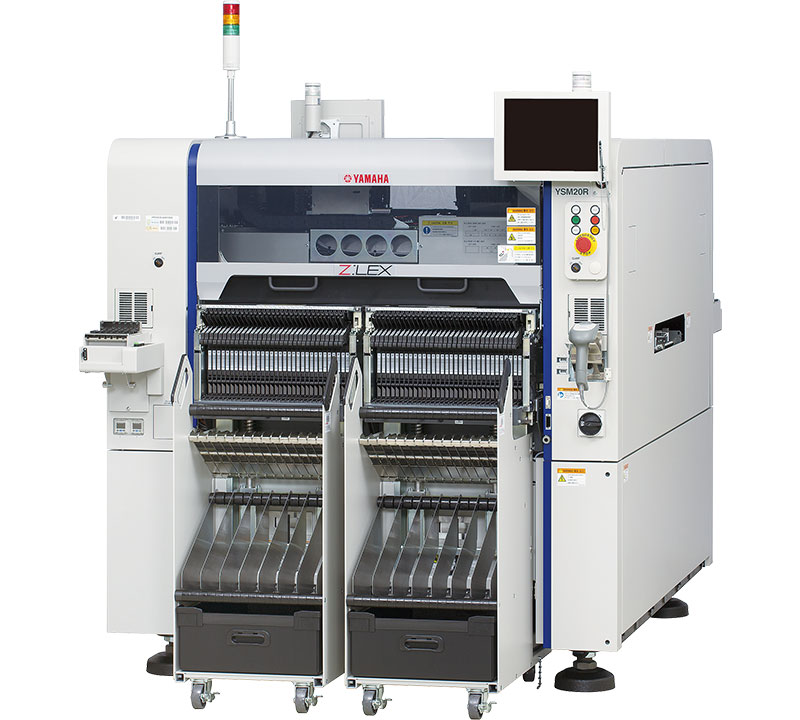

YAMAHA YSM20R-2 pick and place machine
shadow



YSi-V 3D AOI

  • automated, fast, reliable optical inspection
  • optical inspection in 2D and 3D modes
  • accurate judgement thanks to the 3D mode
  • by the help of the angled cameras hidden pins can be also checked
  • in-line system

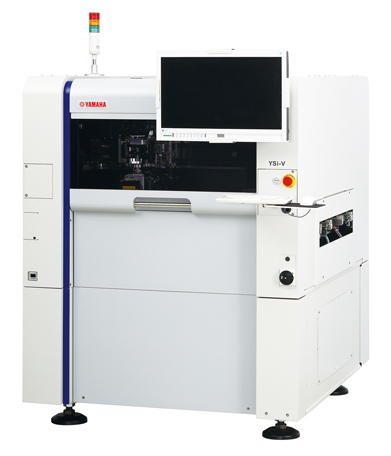

YAMAHA YSi-V 3D AOI
shadow

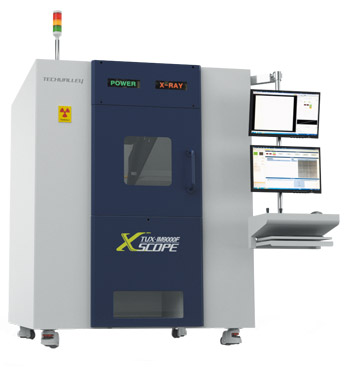

Techvalley TVX-IM1300F X-Ray machine

  • 130kV / 40W X-Rax source
  • 6.9 Megapixels detector
  • 49 µm pixel size

Techvalley TVX-IM1300F
shadow

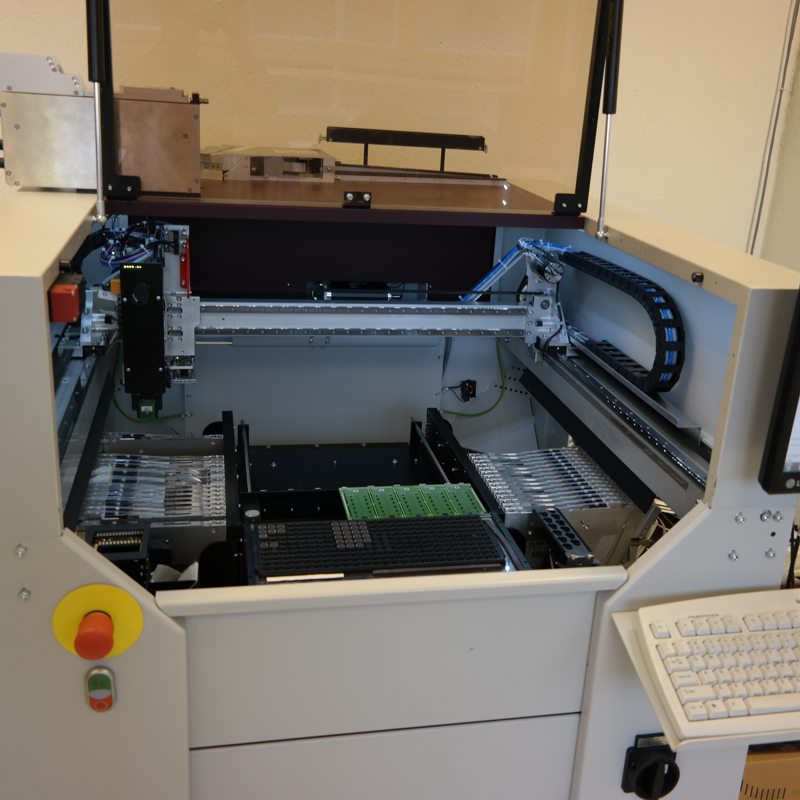

DIMA ATOZ-PP050 SMD pick and place
(2 machines)

  • vision centering
  • optimal for low-medium size batches and prototypes
  • flexible component handling
  • easy programming
  • intelligent feeders
  • smallest part size: 0402(1005 metric)
  • maximum PCB size: 350x450mm
  • able to handle any packages including QFN, QFP, BGA, VTLA etc.

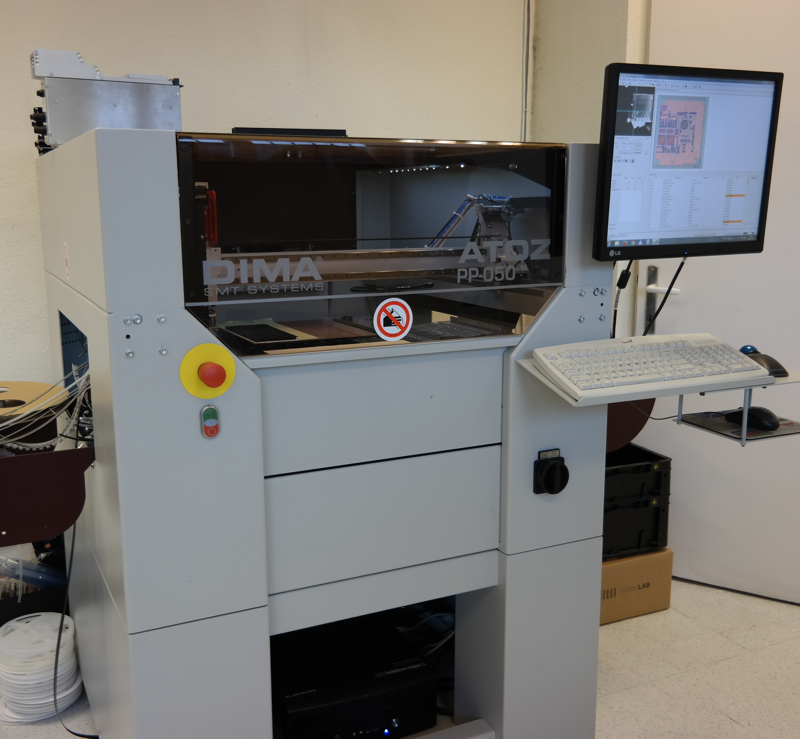

Dima Atoz PP-050 Pick and Place machine
shadow
Dima Atoz PP-050 Pick and Place machine Dima Atoz PP-050 Pick and Place machine Dima Atoz PP-050 Pick and Place machine

Principle of vapor phase soldering



The heating of the PCBs is sourced by thermal energy emitted by the phase transition of a heat transfer liquid (Galder) condensing on the PCBs. The liquid used is chosen with a desired boiling point in mind to suit the solder alloy to be reflowed.

This makes very precise temperature controll possible.






EXMORE VS-500 vapor phase reflow oven

  • consistent heat transfer
  • heat is trasferred by a fluid, so it's more efficient
  • precise temperature controll, it's the parameter of the fluid used
  • perfect soldering for the first time without waste

More information about this technology

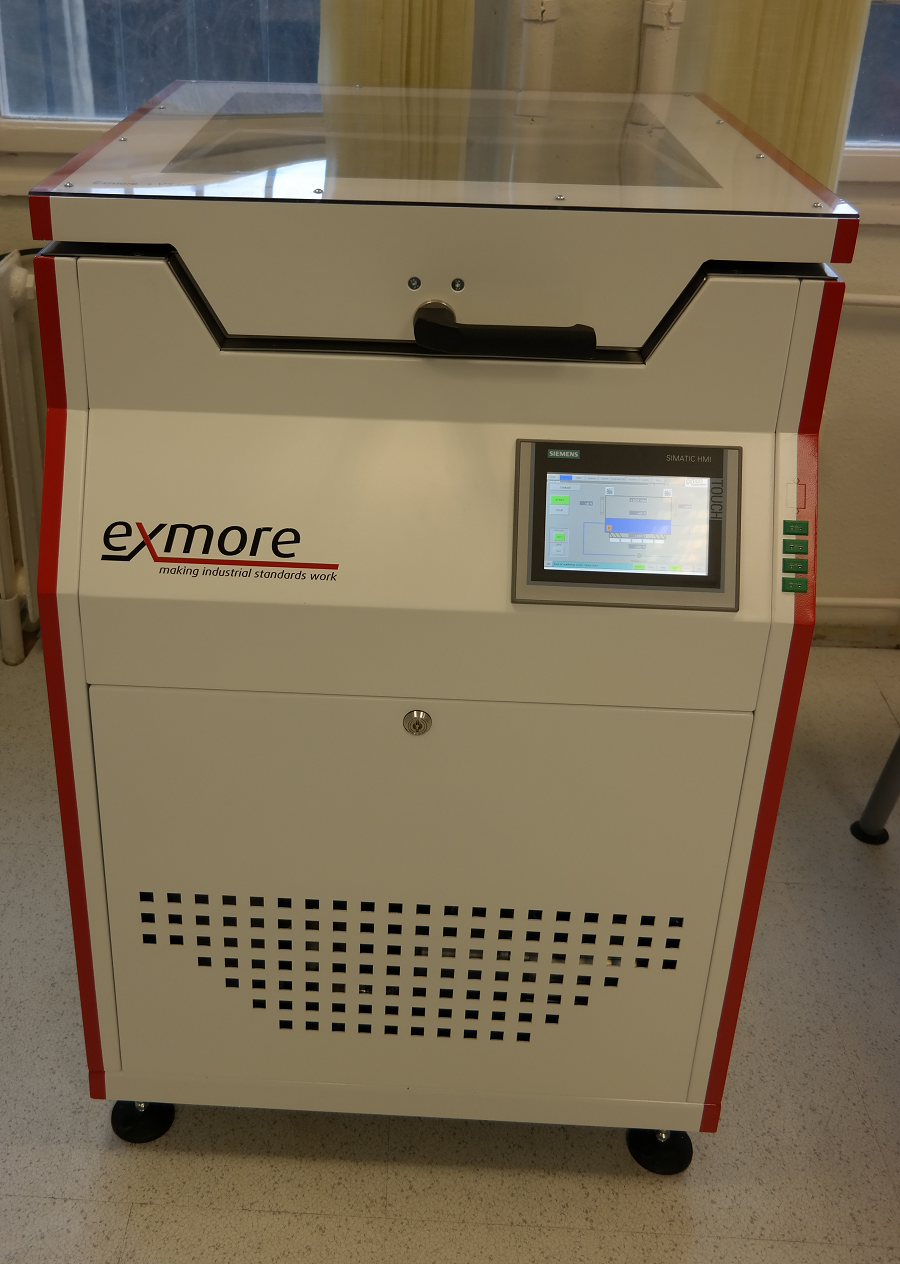

EXMORE vapor-phase reflow oven
shadow



EBSO SPA 300 NC selective soldering machine

  • lead-free soldering in nitrogen
  • wetable nozzles
  • bottom preheater
  • 300 x 300mm soldering area
  • Microdrop fluxer

Video of the machines

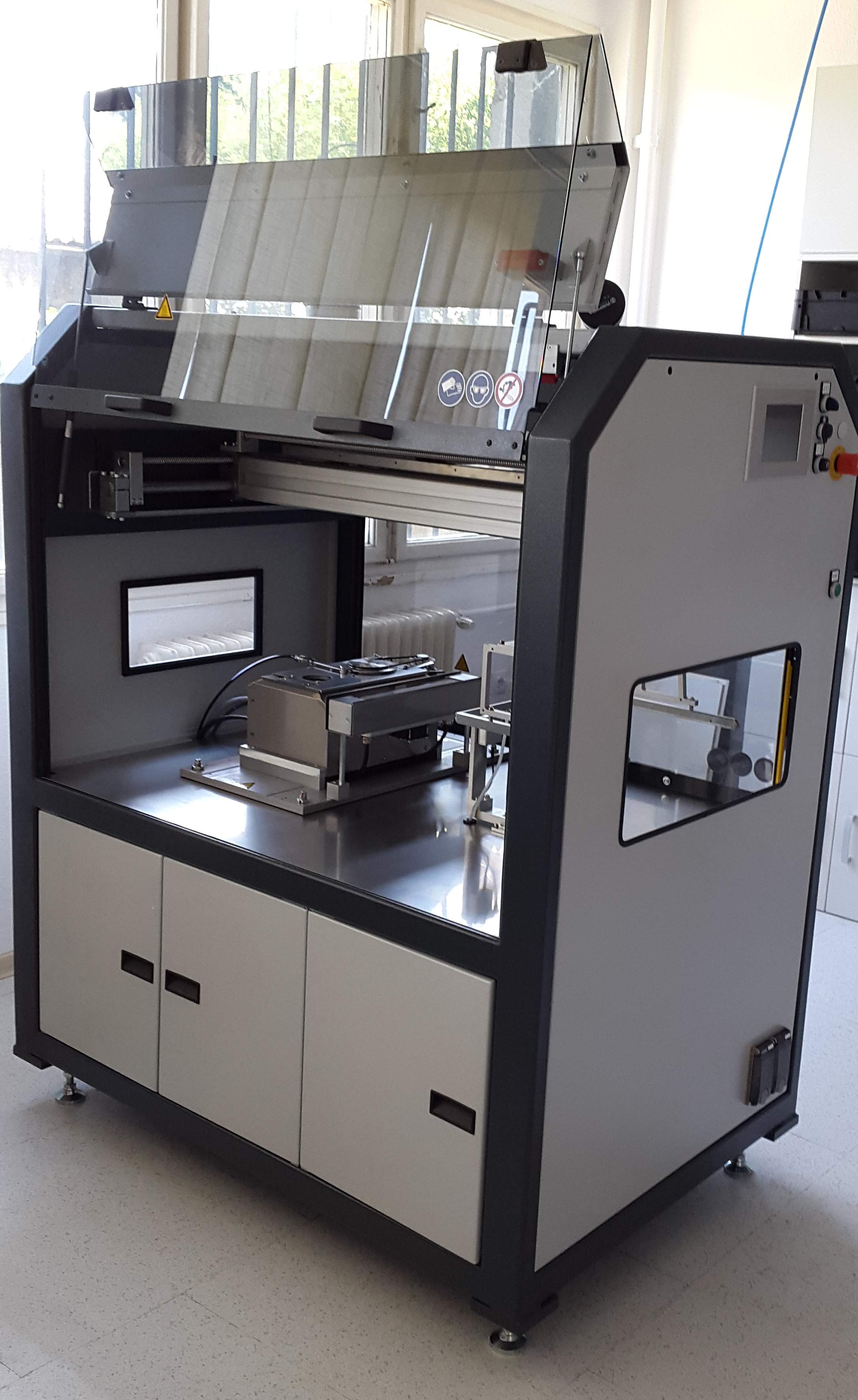

EBSO SPA 300 NC selective soldering machine
